Discarded alternatives

Network Topology Alternatives that were discarded

Connecting Layer3 type networks together

The below diagram shows the overlay part of the OVN Topology that OVN-Kubernetes creates for 3 UDN networks (blue, green and yellow) across two nodes.

Idea1: Add a new transit switch between the two ovn_cluster_routers of the networks

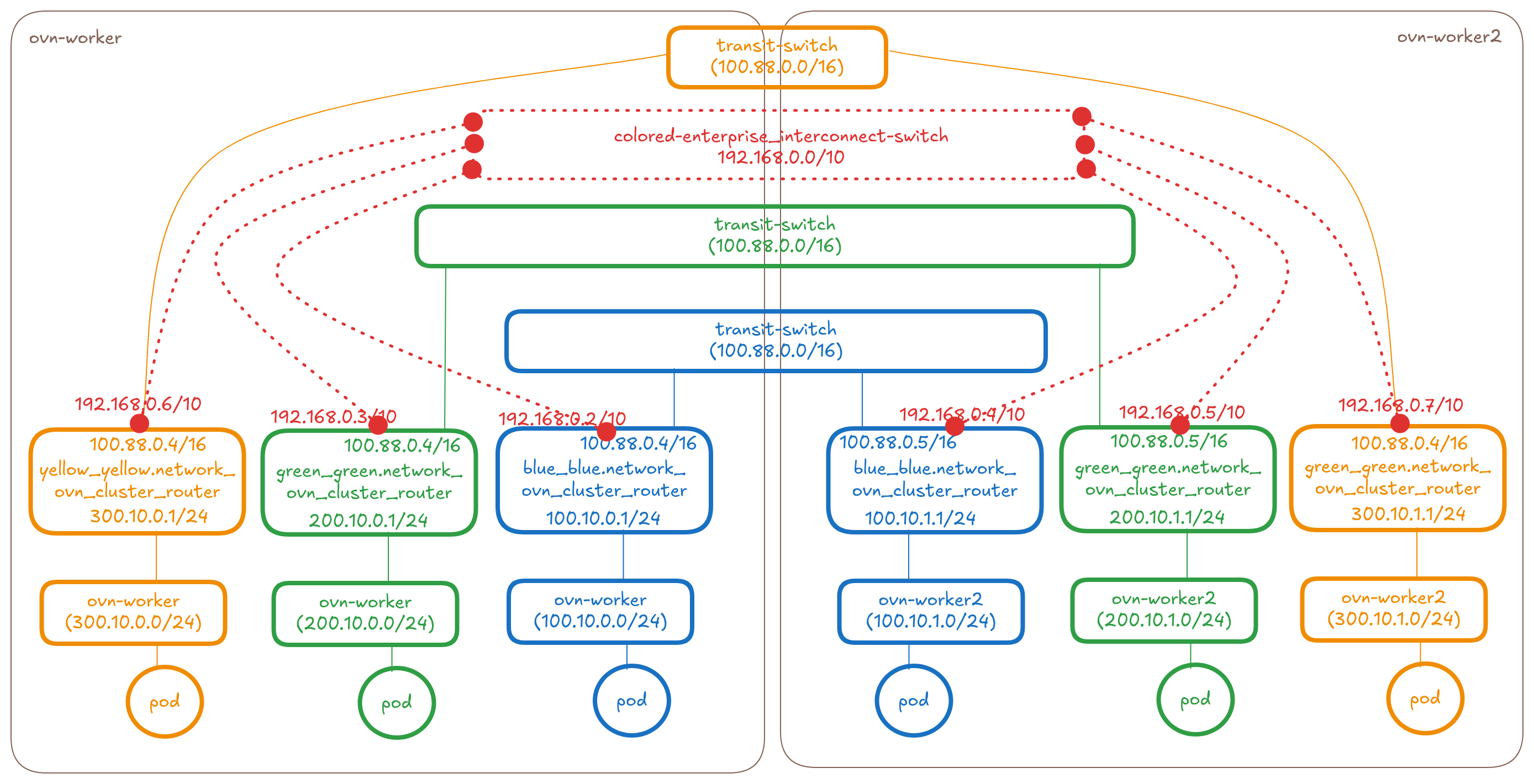

When the UDNConnect CR gets created selecting these three networks, the controller will make the following changes to the topology: * Create a distributed colored-enterprise_interconnect-switch (basically a transit-switch type in OVN used for interconnection) with the connectSubnets value provided on the CR (default=192.168.0.0/10) * Connect the colored-enterprise_interconnect-switch to the ovn_cluster_router's of the blue, green and yellow networks on each node using remote patch ports and tunnelkeys * Add routes towards each connected network's CIDR on the ovn_cluster_router's of the blue, green and yellow networks on each node.

So in this idea it will be 1 router per connect API.

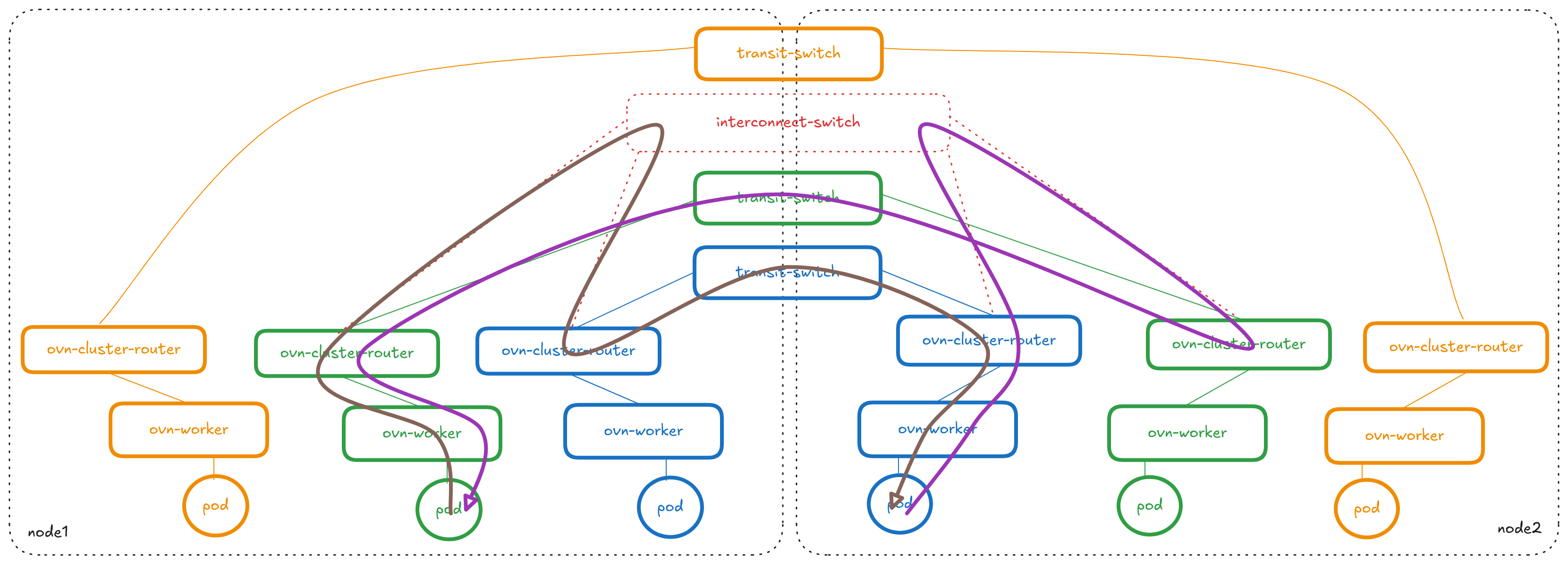

However this would cause an asymmetry for reply traffic:

Idea1.1 Add a new transit router between two ovn_cluster_routers of the networks and move the node-network specific routes to the new connect router

Ultimately Idea 1.1 is what we went with in the main proposal because its the solution with no asymmetry. See the proposal for more details around this.

Idea2: Connecting the ovn_cluster_routers directly

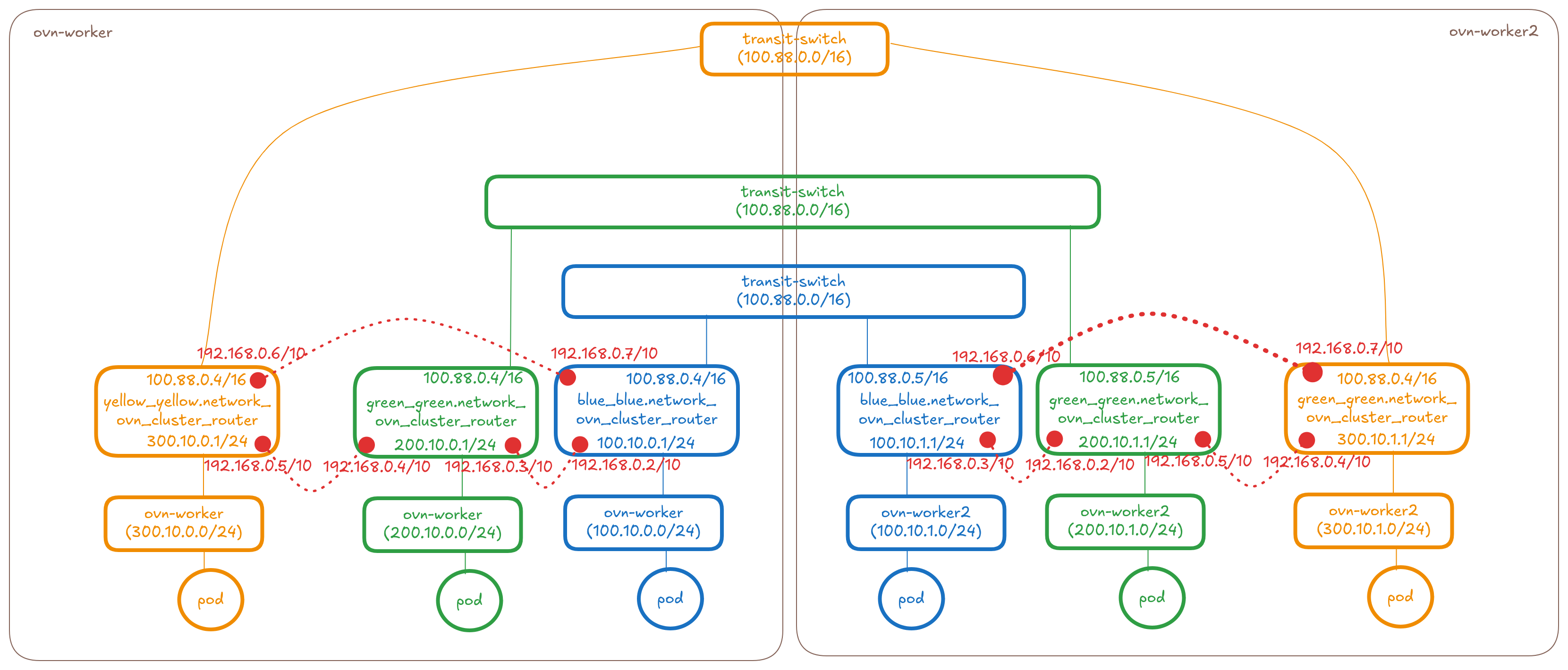

When the UDNConnect CR gets created selecting these two networks, the controller will make the following changes to the topology: * Create a logical-router-port on blue_blue.network_ovn_cluster_router with an IP assigned from connectSubnets. * Create a logical-router-port on green_green.network_ovn_cluster_router with an IP assigned from connectSubnets. * Create a logical-router-port on yellow_yellow.network_ovn_cluster_router with an IP assigned from connectSubnets. These three ports will have their peer field set as each other to allow for direct connectivity.

The above diagram shows what happens when all 3 networks are connected together.

Which idea to pick?

Topic	Idea1	Idea2
Number of new IPs required for connectSubnets	N(nodes)*M(networks)	N(nodes)*M(networks)
Requires ovnkube-controller local IPAM for per node-network router	YES	YES
Requires node-network router IP storage design (either annotations OR nodeNetworkCRD)	YES	YES
Requires Centralized IPAM slicing per node	YES	NO - here given each node can re-use the same set of IPs, there is no need for centralized slicing - this is a huge advantage
Requires Centralized tunnel-ids allocation	YES	NO - this is a huge advantage
Reply is Symmetric	NO - but can be made symmetric with /24 routes if required	NO - replies will be assymmetric
Scalability of routes	/16 will be 1 route on each router per connected network	/16 will be 1 route on each router per connected network
Scalability of connections	Each router get's 1 additional port and the new switch will get M (number of networks) patch ports - so totally N*M patch ports	Point-to-point connections means all ovn_cluster_router's now have N*M patch ports
Dataplane churn caused for connect/disconnect	More isolated changes because adding and disconnecting a network is as simple as adding/removing the port only from that network's router and the central switch.	Direct R2R Connection - so disconnecting a network means adding/removing the port from each connected router towards this network. So removing a specific tenant network will involve touching routers of other tenant's networks.
Network being part of more than one connectAPI	Non-transitivity is automatically taken care of because there is no connection between the indirectly connected networks.	Non-transitivity is taken care of because of the absence of routes on the router for the indirect connection to work. Any lingering stale routes could accidentally cause connectivity.
Extensibility for adding features	Better because adding a transit router or switch opens up adding newer features easily like having hierarchical hubs of connections	Direct Connection might put us in a bind with regards to how much topology change we could do in future
Throughput	Add's an extra hop	Better because its a direct connection
Networking model	Aligns with a vRouter/vSwitch model that users expect	Direct R2R Connection
Connecting mixed type networks	Aligns with a vRouter/vSwitch model that users expect - 1 transit switch per connectAPI	Direct R2R Connection
Accounting for missing topologies on some nodes	This can be accommodated but we'd need to use specific /24 routes.. What about L2?	This won't work

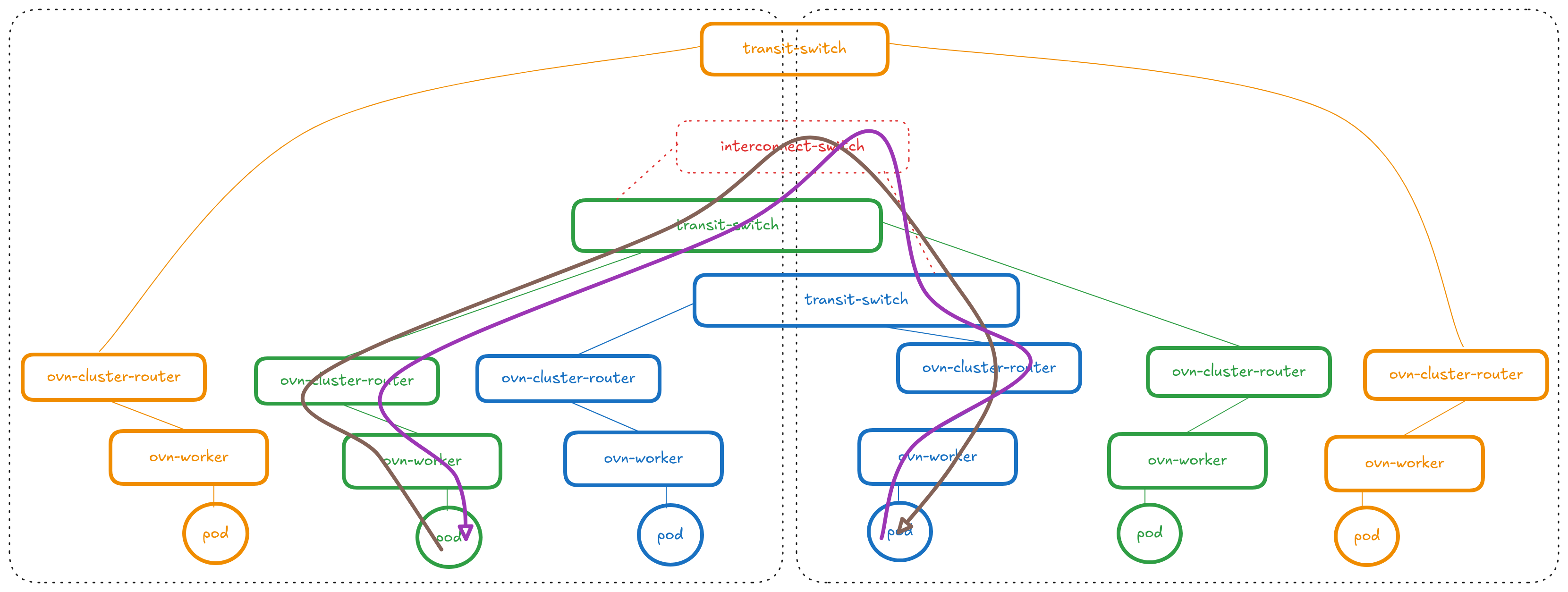

Idea3: Connect the transit switches of the two UDNs together (either using an interconnect switch/router in the middle OR directly using remote ports)

This idea was dropped because: * Additional burden for the user and new API change: Given each transit router today has the same 100.88/16 subnet that is not configurable in UDNs on day2, if we want to connect transit switches directly together, we would need support day2 changes by exposing this subnet via the API and to place an additional constraint of either having unique transit-subnets in each of the UDNs that have to be connected together. This being an internal implementation details seems like a hard requirement for the user to know and configure. * Upgrades and disruption of traffic: Users using UserDefinedNetworks feature in the older versions will need to make the above disruptive change of transit switch subnets that will lead to traffic disruption. * Transitivity of interconnections will happen here which is not desired: If we now wanted to connect yellow with green, yellow would end up being connected to blue automatically which is not desired, in the case where it's directly connecting with remote ports.

Idea3.1: Using NATs

To avoid having to change the transit switch subnet ranges, NAT to a particular UDN IP before sending it into the interconnect router - but I assume we want to preserve srcIPs of the pods. This would also add additional unwanted complexity so this idea was also not pursued.

Connecting Layer2 type networks together

The below diagram shows the overlay part of the OVN Topology that OVN-Kubernetes creates for 3 UDN networks (blue, green and yellow) across two nodes. NOTE: The topology representation is that of the new upcoming Layer2 topology. The dotted pieces in network colors represent the bits in design and not there yet.

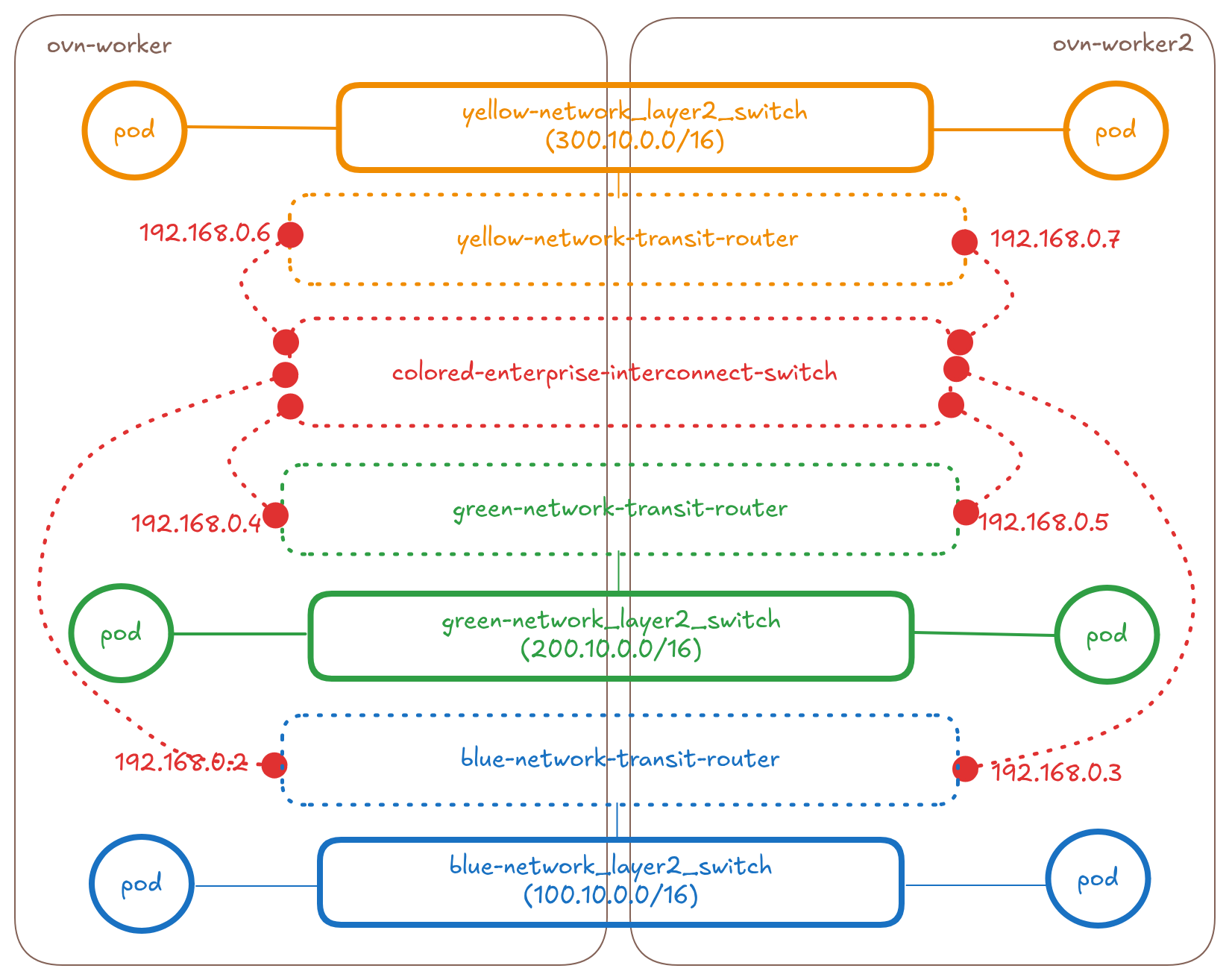

Idea1: Add a new transit switch between the two transit routers of the networks

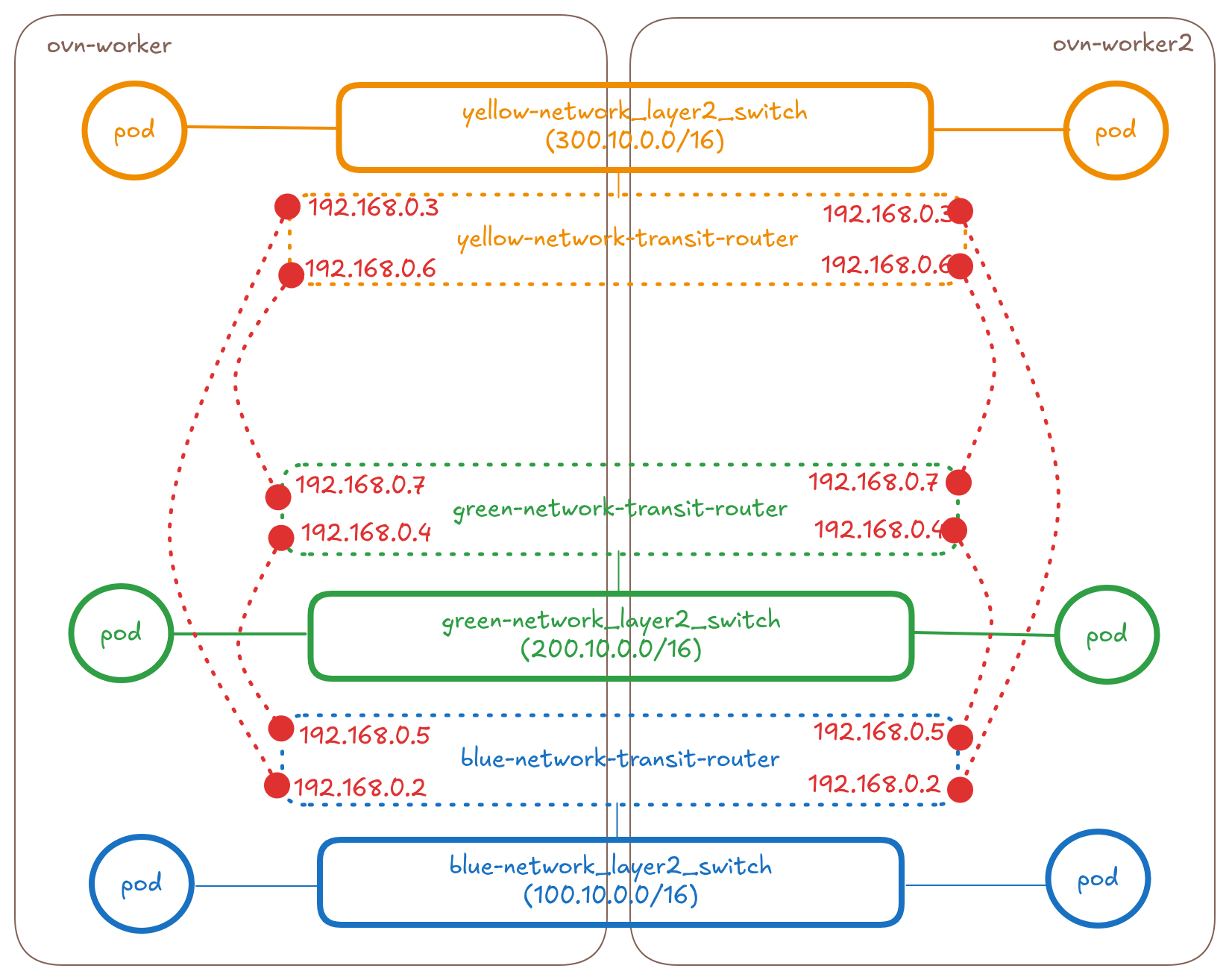

Idea2: Connecting the ovn_cluster_routers directly

Connecting mixed type (layer3 and/or layer2) networks together

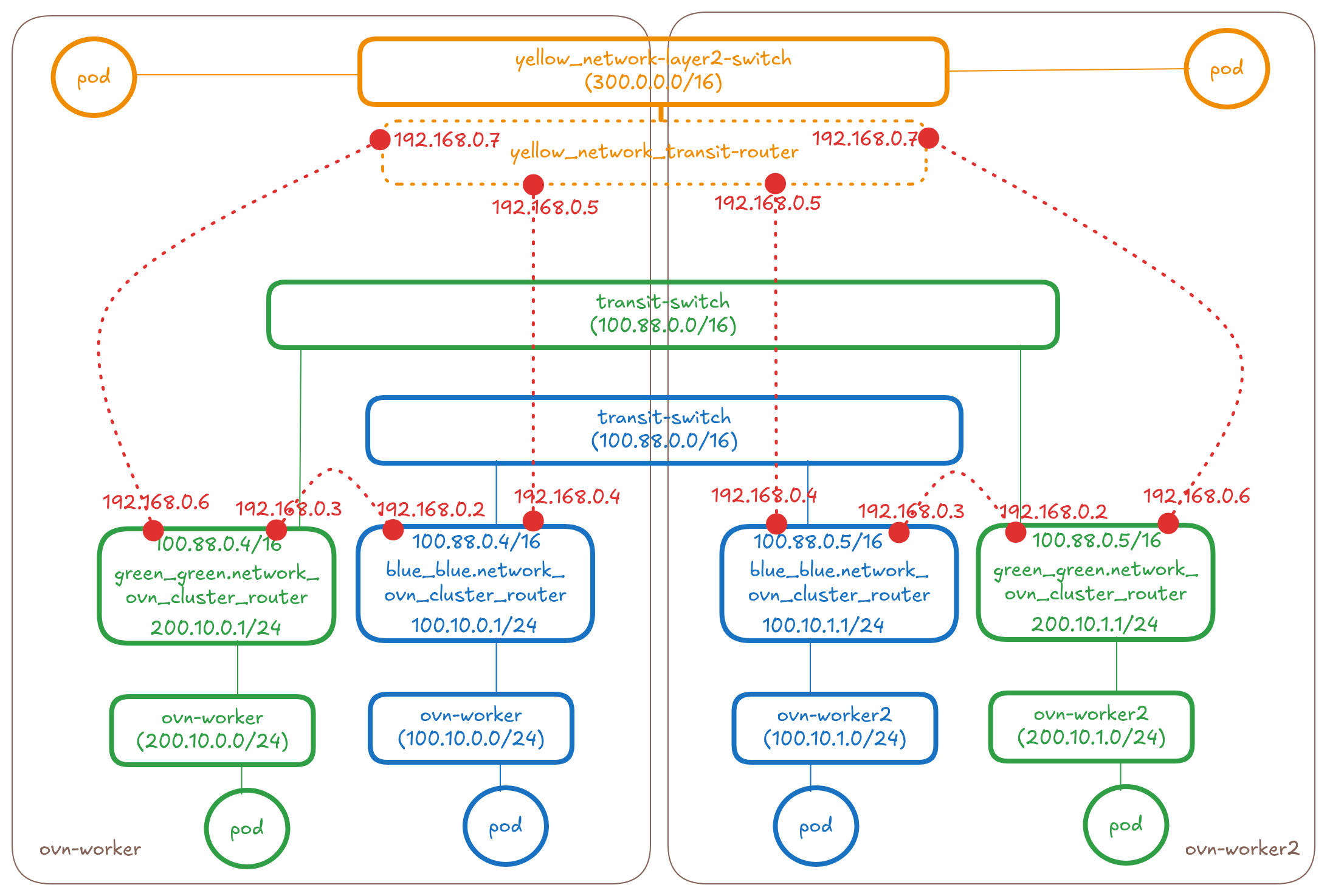

The below diagram shows the overlay part of the OVN Topology that OVN-Kubernetes creates for 3 UDN networks (blue(l3), green(l3) and yellow(l2)) across two nodes. NOTE: The yellow topology representation is that of the new upcoming Layer2 topology. The dotted pieces in network colors represent the bits in design and not there yet.

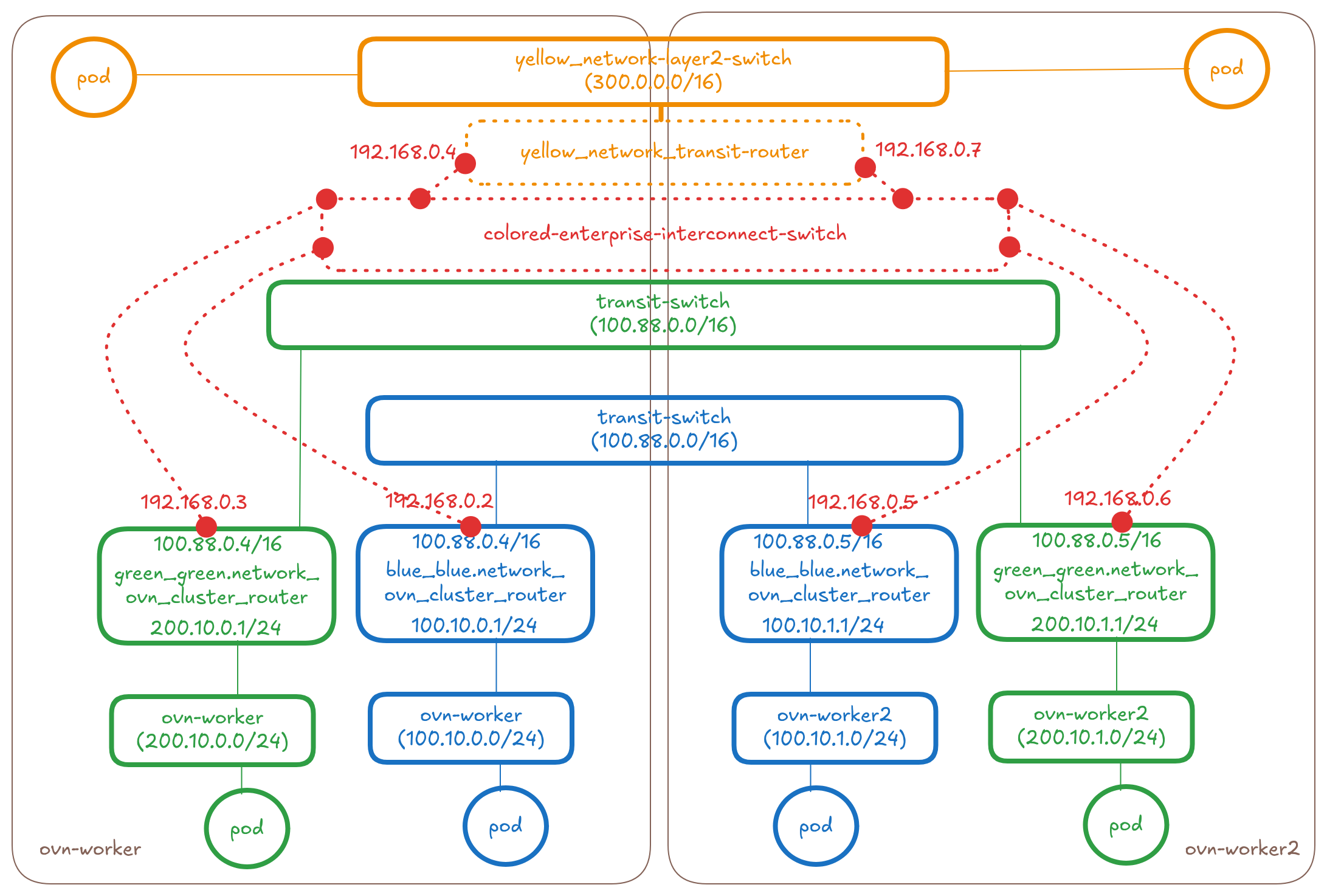

Idea1: Add a new transit switch between the two transit routers of the networks

Idea2: Connecting the ovn_cluster_routers directly
