OKEP-6224: DHCP IPAM Support for Localnet Networks

• Issue: #6224

Problem Statement

OVN-Kubernetes currently supports only two IPAM modes for localnet CUDN: Enabled (OVN assigns IPs from configured subnets) and Disabled (no IP, user configures manually). Currently, obtaining an IP address from an external DHCP server requires a DHCP client to be running inside the pod or VM and executed from its network namespace. OVN-Kubernetes has no mechanism to delegate IP assignment to an external DHCP server on behalf of the workload during the CNI lifecycle. This OKEP introduces a single new DHCP IPAM mode that delegates IP assignment to external DHCP infrastructure.

Goals

• Enable pods on localnet secondary networks to obtain IP addresses from an external DHCP server, by delegating lease acquisition and lifecycle management to the DHCP CNI plugin daemon, which will in turn report the pod IP to OVN-Kubernetes.
• Enable VMs (including VFIO passthrough) on localnet secondary networks to obtain an initial IP via DHCP during CNI ADD, and enable OVN-Kubernetes to detect the IP during CNI ADD.
• Enable OVN-Kubernetes to use the DHCP-learned pod IPs and annotate the pod information during CNI ADD time, in order to enable features like MultiNetworkPolicy and Network QoS that rely on the pod IP.

Non-Goals

• Implementing a DHCP server within OVN-Kubernetes. This feature delegates to external DHCP infrastructure.
• Implementing DHCP lease lifecycle management (renewal, release) within OVN-Kubernetes itself. For pods, lease maintenance is delegated to the upstream DHCP CNI plugin daemon. For KubeVirt VMs, OVN-K performs a one-shot lease acquisition to discover the IP, but ongoing renewal and release are the responsibility of the VM's own DHCP client.

Future Goals

• Extend DHCP IPAM support to Layer 2 and layer 3 topologies.
• Extend DHCP IPAM support to IPv6 (DHCPv6) and dual-stack networks — the current mode is IPv4-only; see the known limitation below.
• Supporting DHCP IPAM in unprivileged ovnkube-node mode.
• Explore an alternative model where the guest drives DHCP and OVN-Kubernetes learns the resulting IPs/MACs afterwards, rather than initiating the DORA at CNI ADD that would pave the way for other use cases such as discovering guest-assigned addresses more generally.

Introduction

In environments where IP address management is handled by external DHCP servers, Kubernetes workloads attached to physical networks via OVN-Kubernetes localnet topology need to obtain their IP addresses from this existing DHCP infrastructure rather than relying on Kubernetes-native IPAM.

The DHCP IPAM mode serves both pods and virtual machines. At CNI ADD time, OVN-Kubernetes inspects the workload and automatically applies the lease-handling behavior best suited to each:

1. Pods/Containers: OVN-Kubernetes delegates to the standard DHCP CNI IPAM plugin, which acquires the IP and maintains the lease for the pod's lifetime.
2. KubeVirt VMs: OVN-Kubernetes performs a one-shot DHCP discovery to learn the IP and reports it; the VM's own guest DHCP client owns the lease (including renewal).

The detailed call chains, the pod-vs-VM detection, and the VFIO driver-handoff handling are described in the Implementation Details section.

DHCP CNI Plugin Architecture

The DHCP CNI plugin consists of two components:

/opt/cni/bin/dhcp              (short-lived binary, exec'd per ADD/DEL)
       │
       │ RPC over unix socket
       ▼
/opt/cni/bin/dhcp daemon       (long-running process, maintains leases)
       │
       │ raw socket inside container netns
       ▼
physical network ←→ DHCP server

The dhcp binary is a thin RPC client. The daemon enters the container's network namespace, opens a raw socket on the pod's interface, and performs the DHCP handshake. A dedicated goroutine per lease remains inside the container netns for the pod's lifetime, handling renewals at T1 (50% of lease time) and T2 (87.5%).

OVN-Kubernetes CNI Architecture

OVN-Kubernetes uses a split CNI architecture:

kubelet → CNI shim → HTTP POST over unix socket → CNI server (ovnkube-node, long-lived)

The shim is a thin pass-through. The server running in ovnkube-node has access to OVS, OVN, Kubernetes API, and the container network namespace. DHCP delegation is performed on the server side to keep the shim minimal and because the server already handles all interface configuration.

User-Stories/Use-Cases

Story 1: Pod with DHCP on Localnet

As a cluster administrator, I want pods attached to a physical network to automatically receive IP addresses from the existing enterprise DHCP server, so that IP allocation integrates seamlessly with the data center's DHCP infrastructure without requiring manual configuration or a separate Kubernetes-managed IP pool.

Story 2: VM with VFIO Passthrough on Localnet

For KubeVirt VMs with SR-IOV VFIO passthrough, I want the VM's DHCP-assigned IP to be discovered by OVN-Kubernetes during CNI ADD, so that the IP is reported in the CNI result and programmed on the OVN NBDB logical switch port, even though the VF is passed directly to the VM.

Story 3: Pods and VMs Coexisting on the Same Physical Network

As a cluster administrator, I want pods and VMs to share a single localnet network and obtain IPs from the same external DHCP pool, so that I configure one network and OVN-Kubernetes automatically does the right thing for each workload type.

Story 4: VM on Localnet over KubeVirt Bridge Binding with Live Migration

As a KubeVirt VM owner, I want the guest's localnet interface attached over KubeVirt's bridge binding to be configured by the external DHCP server seamlessly, and the VM to retain its network settings (including MAC and IP addresses) when it is live-migrated to another node, so that the VM keeps the same address and connectivity across migration without any manual reconfiguration.

Proposed Solution

API Details

New IPAM Mode

Extend the IPAMMode enum with a single new value:

// +kubebuilder:validation:Enum=Enabled;Disabled;DHCP
type IPAMMode string

const (
    IPAMEnabled  IPAMMode = "Enabled"
    IPAMDisabled IPAMMode = "Disabled"
    IPAMDHCP     IPAMMode = "DHCP"
)

Mode	Description	Lease Management	Subnets Field
Enabled	OVN-K allocates IPs from subnets (existing)	N/A	Required
Disabled	No IP assignment (existing)	N/A	Forbidden
DHCP	External DHCP, IPv4-only; behavior selected at runtime by workload type	Pods: DHCP CNI daemon. VMs: guest OS	Forbidden

Field Descriptions

• DHCP: OVN-Kubernetes delegates IP assignment to the external DHCP server (IPv4 only) and selects the lease-handling behavior at CNI ADD time based on the workload type:
• Pods (not owned by a VirtualMachineInstance): OVN-Kubernetes delegates to the DHCP CNI IPAM plugin daemon, which performs the full DHCP handshake and maintains the lease (renewals at T1/T2) for the pod's lifetime. The lease is released on CNI DEL.
• KubeVirt VMs (owned by a VirtualMachineInstance): OVN-Kubernetes performs a one-shot DHCP lease acquisition during CNI ADD to discover the IP address assigned by the external DHCP server. No lease maintenance is performed; the VM runs its own DHCP client and manages the lease lifecycle. The discovered IP is reported in the CNI result for multus annotation and NBDB programming.

CRD Validation Rules

# Localnet topology validations:
- message: "DHCP ipam.mode is only supported for Localnet Secondary networks"
  rule: '!has(self.ipam) || !has(self.ipam.mode) || self.ipam.mode != "DHCP" || self.role == "Secondary"'

- message: "Subnets is forbidden when ipam.mode is DHCP; addresses are assigned by the external DHCP server"
  rule: '!has(self.ipam) || !has(self.ipam.mode) || self.ipam.mode != "DHCP" || !has(self.subnets)'

# Layer2 topology validation:
- message: "DHCP ipam.mode is not supported for Layer2 topology, use Localnet topology instead"
  rule: '!has(self.ipam) || !has(self.ipam.mode) || self.ipam.mode != "DHCP"'

Example ClusterUserDefinedNetwork

apiVersion: k8s.ovn.org/v1
kind: ClusterUserDefinedNetwork
metadata:
  name: localnet-dhcp-ipam
spec:
  namespaceSelector:
    matchLabels:
      localnet: "true"
  network:
    topology: Localnet
    localnet:
      role: Secondary
      physicalNetworkName: physnet
      ipam:
        mode: DHCP

Generated NAD Config

The UDN controller generates the NAD automatically. The ipam field is set directly in the OVN plugin config (single-plugin format, not a confList). The generated NAD is identical for pods and VMs. There is only one config, and OVN-Kubernetes selects the pod-vs-VM behavior at runtime:

{
  "cniVersion": "1.0.0",
  "name": "localnet-dhcp",
  "type": "ovn-k8s-cni-overlay",
  "topology": "localnet",
  "role": "secondary",
  "physicalNetworkName": "physnet",
  "ipam": { "type": "dhcp" }
}

Pod Network Annotation Changes

The k8s.ovn.org/pod-networks annotation records, per network, the IP that OVN-Kubernetes programmed for the interface. To make it explicit that an interface's address was learned from an external DHCP server rather than allocated by OVN-K, this OKEP introduces a new optional field, ipam_mode, on each per-network entry. It is set for every pod on a DHCP secondary network, regardless of workload type.

• ipam_mode: "dhcp" is set by ovnkube-node during CNI ADD whenever the corresponding NAD has ipam.type: "dhcp" for both plain pods and KubeVirt VM pods.
• Absent for all non-DHCP modes (Enabled, Disabled).

Why this field is needed. Setting ipam_mode for all DHCP pods makes the IP's origin self-describing i.e., any deployer inspecting the annotation can tell that the interface's address came from an external DHCP server rather than from OVN-K IPAM. It also gives KubeVirt cloud-init sidecars an explicit signal to emit DHCP configuration for the interface in the guest cloud-init network config, so the guest runs its own DHCP client over the VF and can renew/re-acquire its lease independently.

Example annotation (DHCP VFIO secondary on a VM pod):

{
  "default": {
    "ip_addresses": ["10.220.2.18/24"],
    "mac_address": "0a:58:0a:dc:02:12",
    "gateway_ips": ["10.220.2.1"],
    "role": "primary"
  },

  "default/ovn-localnet-dhcp-vfio": {
    "ip_addresses": ["10.1.192.213/24"],
    "mac_address": "02:00:00:00:20:08",
    "gateway_ips": ["10.1.192.1"],
    "role": "secondary",
    "ipam_mode": "dhcp"
  }
}

Implementation Details

Workload Differentiation at CNI ADD

For a NAD with ipam.type: "dhcp", ovnkube-node selects the lease-handling behavior at CNI ADD time using the existing kubevirt.IsPodOwnedByVirtualMachine(pod) helper, which returns true when the pod carries the vm.kubevirt.io/name label that KubeVirt sets on every virt-launcher (VM) pod.

Workload	Detection	DHCP behavior
Normal pod (veth)	IsPodOwnedByVirtualMachine == false	Delegate to the DHCP CNI plugin daemon, full lease maintenance (renew at T1/T2, release on DEL)
KubeVirt VM - VFIO passthrough	IsPodOwnedByVirtualMachine == true and the VF is bound to vfio-pci	Temporary driver handoff (bind VF to its detected NIC driver), one-shot DORA, rebind to vfio-pci; IP reported via annotation only
KubeVirt VM - non-VFIO (l2bridge/managedTap)	IsPodOwnedByVirtualMachine == true and no VFIO passthrough device	One-shot DORA on the pod netns netdev; IP reported via annotation only (no driver handoff)

End-to-End Flow (Pods case - delegated to DHCP IPAM plugin)

The following describes the detailed call chain when a pod (not owned by a VirtualMachineInstance) is created with DHCP IPAM:

1. Multus Delegation: When a pod is created, kubelet invokes Multus, which reads the NetworkAttachmentDefinition (NAD). Multus identifies the CNI plugin as ovn-k8s-cni-overlay and executes the OVN-K CNI shim binary with the NAD config on stdin and CNI environment variables (CNI_COMMAND=ADD, CNI_NETNS, CNI_IFNAME, etc.).
2. Shim Pass-Through: The OVN-K CNI shim binary (/opt/cni/bin/ovn-k8s-cni-overlay) does not perform any networking itself. It packages the CNI config and environment into a JSON request and forwards it via HTTP POST over a Unix socket (/var/run/ovn-kubernetes/cni/ovn-cni-server.sock) to the ovnkube-node daemon running on the same node.
3. Interface Setup (ovnkube-node Server Side): The ovnkube-node CNI server receives the request, parses the NAD config, and calls ConfigureInterface() which sets up the pod interface, either a veth pair for standard pods, or a VF moved into the pod network namespace with its VF representor on the host side when SR-IOV is present. It configures the MAC address and attaches the host-side interface (veth-end or VF representor) to OVS br-int via ConfigureOVS(). Since IPAM is DHCP, setupNetwork() skips IP configuration.
4. DHCP Delegation (Server Side): ovnkube-node detects ipam.type == "dhcp" in the NAD config and, because the pod is not owned by a VirtualMachineInstance, executes the standard DHCP CNI IPAM plugin binary (/opt/cni/bin/dhcp) with the appropriate CNI arguments (netns path, interface name, container ID). This delegates IP allocation entirely to the external DHCP IPAM plugin.
5. DHCP Lease Acquisition: The DHCP plugin binary connects to the DHCP daemon (a long-running process on the node, listening on /run/cni/dhcp.sock) via RPC. The daemon enters the pod's network namespace, performs a full DHCP DORA exchange (Discover, Offer, Request, Ack) with the external DHCP server on the physical network, and returns the assigned IP, subnet mask, gateway, and routes.
6. Result Assembly, Pod Annotation, and Return: ovnkube-node applies the DHCP result to the pod interface inside the network namespace (AddrAdd for the IP, RouteAdd for static routes and default gateway), and patches the pod with the DHCP-learned IP via the k8s.ovn.org/pod-networks annotation. ovnkube-controller observes this annotation and programs the corresponding logical switch port in the OVN NBDB; ovnkube-node then merges the DHCP-assigned IPs and routes into the CNI Result and returns it back through the chain: ovnkube-node server -> HTTP response -> shim -> stdout -> Multus. Multus writes the result into the pod's k8s.v1.cni.cncf.io/network-status annotation.
7. Lease Lifecycle: The DHCP daemon manages lease renewal in the background for the lifetime of the pod. On pod deletion, kubelet calls Multus with CNI DEL, which follows the same path (Multus -> shim -> ovnkube-node server), and ovnkube-node executes the DHCP plugin with CNI DEL, triggering the daemon to release the lease back to the DHCP server before tearing down the interface and removing the OVS port.

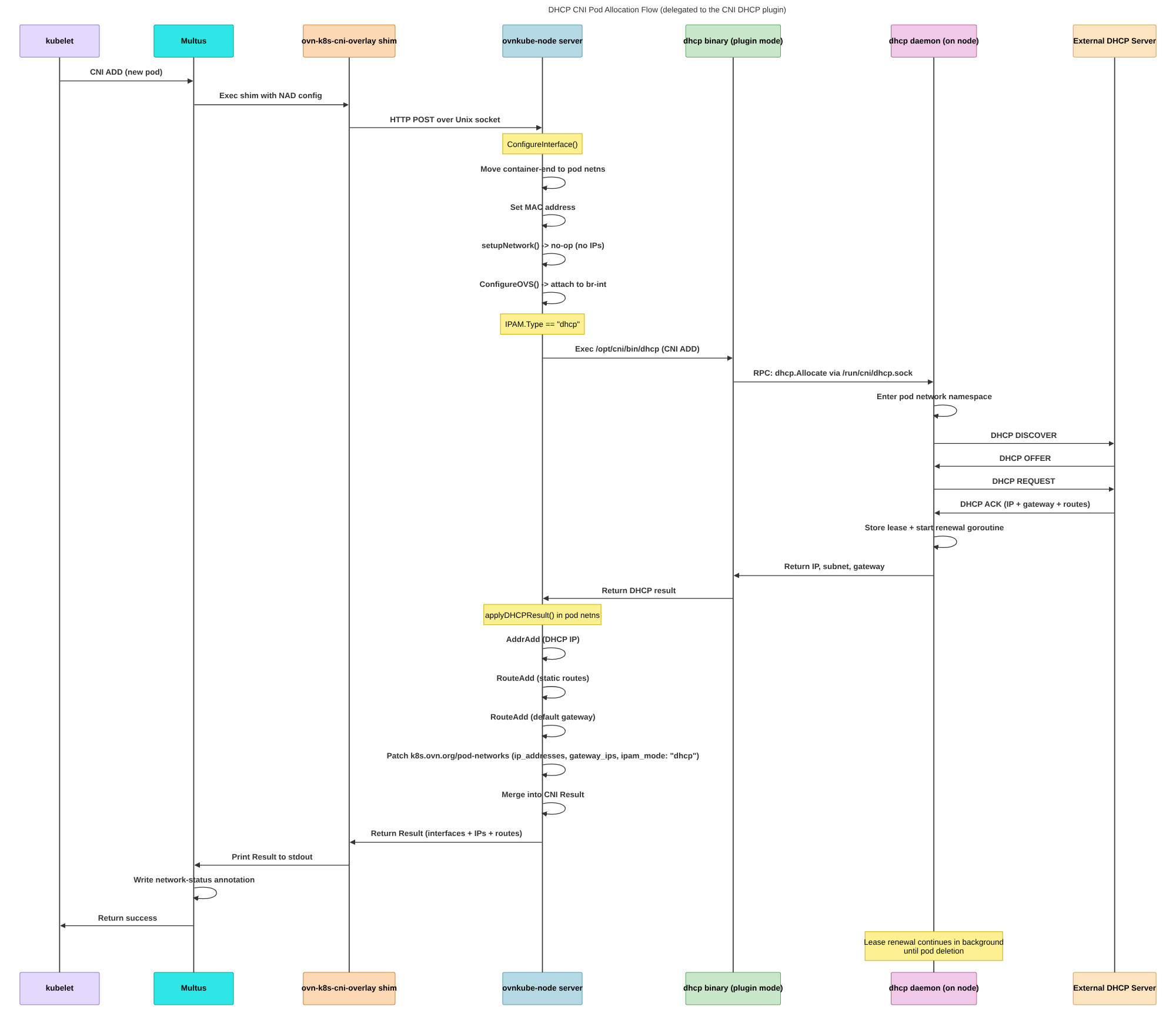

The following diagram illustrates the complete pod (delegated) flow, showing the interaction between Multus, the CNI shim, ovnkube-node, the DHCP plugin, the DHCP daemon, and the external DHCP server:

End-to-End Flow (KubeVirt VMs - for both VFIO and non VFIO case)

For KubeVirt VMs, OVN-Kubernetes performs a one-shot DHCP discovery instead of delegating to the DHCP CNI plugin daemon, branching on the VFIO vs non-VFIO binding as summarized in the table above. In the non-VFIO (l2bridge/managedTap) case, OVN-Kubernetes only reports the discovered IP via the pod annotation and must not configure it on the pod interface. Configuring the IP on the pod interface would cause KubeVirt to start an in-pod DHCP server (dnsmasq), which would conflict with the external DHCP server and prevent the guest from renewing its lease externally.

The following describes the detailed call chain when a VM is created with DHCP IPAM:

1. Multus Delegation: When a VM pod is created, kubelet invokes Multus, which reads the NetworkAttachmentDefinition (NAD). Multus identifies the CNI plugin as ovn-k8s-cni-overlay and executes the OVN-K CNI shim binary with the NAD config on stdin and CNI environment variables.
2. Shim Pass-Through: The OVN-K CNI shim binary packages the CNI config and environment into a JSON request and forwards it via HTTP POST over a Unix socket to the ovnkube-node daemon running on the same node.
3. Interface Setup (ovnkube-node Server Side): The ovnkube-node CNI server receives the request, parses the NAD config, and calls ConfigureInterface() which sets up the interface and attaches it to OVS br-int via ConfigureOVS(). Since IPAM is DHCP, setupNetwork() skips IP configuration. For VFIO VMs, the VF is temporarily unbound from vfio-pci and rebound to the kernel NIC driver that matches its hardware that is detected from the VF's PCI vendor/device, e.g. mlx5_core for NVIDIA/Mellanox ConnectX NICs to expose a netdev for the DHCP exchange. If the VF's NIC vendor is unknown/unsupported (no matching kernel driver can be determined), the CNI request fails. For non-VFIO VMs (l2bridge/managedTap binding), the netdev already present in the pod netns is used as-is and no driver handoff is needed.
4. One-Shot DHCP Lease Acquisition (Server Side): ovnkube-node detects ipam.type == "dhcp" in the NAD config and, because the pod is owned by a VirtualMachineInstance (kubevirt.IsPodOwnedByVirtualMachine is true), calls doOneShotDHCP() directly using the insomniacslk/dhcp Go library. Unlike the pod case, no external DHCP plugin binary or daemon is involved. ovnkube-node performs a full DHCP DORA exchange (Discover, Offer, Request, Ack) with the external DHCP server on the physical network to discover the IP address. For VFIO VMs, this exchange happens on the temporary netdev in the host namespace during the driver handoff window; for non-VFIO VMs it happens on the pod netns interface.
5. Result Assembly, Pod Annotation, and Return: In both the VFIO and non-VFIO cases, the discovered IP is only reported, never applied to the interface itself. For VFIO case, the temporary netdev is rebound to vfio-pci, so any IP configured on it would be discarded anyway. for non-VFIO, configuring the IP on the pod interface would trigger KubeVirt's in-pod dnsmasq. ovnkube-node patches the pod's k8s.ovn.org/pod-networks annotation with the DHCP-learned ip_addresses and gateway_ips (so that ovnkube-controller can program the corresponding logical switch port in the OVN NBDB and other features such as MultiNetworkPolicy and Network QoS can consume the IP) and an ipam_mode: "dhcp" flag (see the Pod Network Annotation Changes section for details). For VFIO VMs, the VF is rebound to vfio-pci before the result is returned. ovnkube-node then returns the result back through the chain: ovnkube-node server -> HTTP response -> shim -> stdout -> Multus. Multus writes the result into the pod's k8s.v1.cni.cncf.io/network-status annotation.
6. No Lease Maintenance: Unlike the pod case, no lease renewal goroutine or daemon is started. The VM's own operating system (e.g., dhclient via cloud-init or NetworkManager) is expected to run its own DHCP client after boot and take over lease management. On CNI DEL, no DHCP RELEASE is sent as the VM's DHCP client handles its own lifecycle.

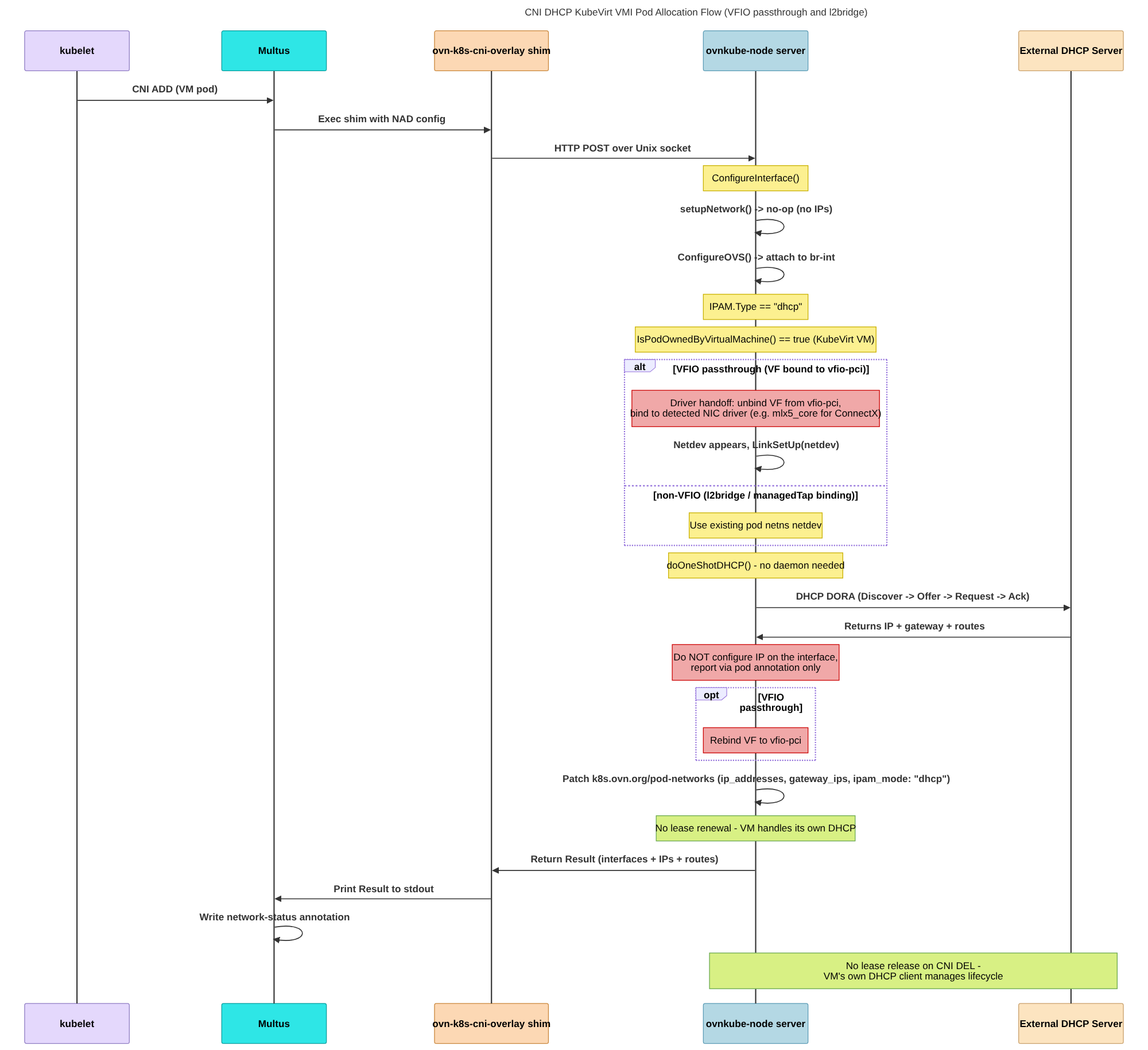

The following diagram illustrates the complete KubeVirt VM (one-shot discovery) flow, covering both the VFIO passthrough case (with the driver-handoff window) and the non-VFIO l2bridge/managedTap case (where the IP is discovered but not configured on the pod interface), along with the IsPodOwnedByVirtualMachine check:

NAD Controller Validation

The existing validation in multi_network.go that rejects any IPAM.Type must be updated to allow "dhcp":

if netconf.IPAM.Type != "" && netconf.IPAM.Type != "dhcp" {
    return fmt.Errorf("error parsing NAD %s: %w", nadName, ErrorUnsupportedIPAMKey)
}

NBDB Programming

ovnkube-controller reads the DHCP-assigned IP from the pod's k8s.ovn.org/pod-networks annotation and programs the logical switch port accordingly. The DHCP-assigned IP is propagated via:

1. CNI result → multus network-status annotation → pod annotation
2. ovnkube-controller reads the pod annotation and sets the IP on the logical switch port
3. Port security and ACLs are configured based on the logical switch port's IP

Prerequisites

• DHCP daemon (/opt/cni/bin/dhcp daemon) must run on each node (for the pod delegation path)
• ovnkube-node DaemonSet must mount:
• /opt/cni/bin from host (for dhcp binary)
• /run/cni from host (for dhcp daemon socket a new mount required for the pod delegation path)

Testing Details

• Unit tests covering CRD validation rules for the DHCP mode (topology and role constraints) and NAD template generation with DHCP IPAM config.
• Unit tests covering the CNI ADD workload differentiation of verifying that a plain pod is delegated to the DHCP IPAM plugin while a KubeVirt VM pod (IsPodOwnedByVirtualMachine) takes the one-shot discovery path and gets the ipam_mode: "dhcp" annotation.
• E2E tests with a DHCP server (dnsmasq) on the localnet physical network verifying pods receive DHCP-assigned IPs, have connectivity, and that leases are renewed for the pod's lifetime.
• E2E tests verifying pod deletion triggers DHCP lease release and interface teardown.
• E2E tests for MultiNetworkPolicy on a DHCP IPAM localnet network exercising both podSelector and namespaceSelector rules, and verifying that policies are enforced against the DHCP-learned pod IPs (i.e. policy enforcement becomes effective only after the IP is reported via the pod annotation, confirming the control plane consumes the DHCP-learned IP).
• E2E tests for Network QoS on a DHCP IPAM localnet network, verifying that QoS rules selecting pods by label are programmed against the DHCP-learned pod IPs and applied to traffic on the localnet interface.

Documentation Details

• New section in ovn-kubernetes.io: "DHCP IPAM for Localnet Networks"
• Configuration guide for the DHCP mode, including how pods and KubeVirt VMs are handled differently at runtime
• Prerequisites (DHCP daemon, server, DaemonSet mounts)
• Update existing localnet documentation to reference the DHCP IPAM mode

Risks, Known Limitations and Mitigations

Known Limitation: DHCP IPAM is currently supported only for IPv4

The upstream DHCP CNI plugin (pod path) and the one-shot VM discovery both speak DHCPv4 only. OVN-Kubernetes therefore treats a DHCP network as IPv4 throughout the stack (IP-based feature matches, address sets). Currently, an IPv6 address a guest acquires on its own via DHCPv6 or router advertisements is not reported to OVN-Kubernetes.

Mitigation: IPv6 support requires DHCPv6 support in the upstream DHCP CNI plugin. once available, it will extend this same DHCP mode.

Known Limitation: DHCP RELEASE with dnsmasq (pod delegation path)

The upstream DHCP CNI plugin sends DHCP RELEASE packets with source IP 0.0.0.0 instead of the client's assigned IP. This is because the plugin uses raw broadcast sockets (nclient4.NewRawUDPConn) for all operations, but RELEASE should use unicast per RFC 2131. dnsmasq validates the source IP and silently drops RELEASE packets with 0.0.0.0. The lease expires naturally on the DHCP server side.

Mitigation: A fix is required in the upstream DHCP CNI plugin to use nclient4.WithUnicast() when creating the client for RELEASE operations.

Known Limitation: Lease Loss on DHCP Daemon Restart (pod delegation path)

The DHCP CNI daemon stores leases in memory only. If the daemon process restarts, all active leases are lost. No renewal will occur for existing pods.

Mitigation: A fix is required in the upstream DHCP CNI plugin to persist lease state to a file on disk, so that the daemon can recover active leases and resume renewals after a restart. In the interim, configure the DHCP server with static MAC-to-IP reservations so that even if a lease expires, no other host gets the same IP. Pods can be restarted to obtain fresh leases: since the daemon cannot re-adopt the leases it forgot on restart, a pod restart re-runs CNI ADD and performs a new DORA, which re-registers the lease with the running daemon so renewal resumes (a fresh acquisition, not recovery of the lost lease).

OVN-Kubernetes Version Skew

DHCP IPAM for localnet networks will be delivered in version 1.4.

Alternatives

N/A

Backwards Compatibility

API Compatibility

• The new DHCP enum value is additive. Existing Enabled and Disabled modes are unchanged.

References

• DHCP CNI IPAM Plugin Documentation
• CNI Specification v1.0.0 — IPAM Delegation
• containernetworking/plugins — DHCP source code
