MultiNetworkPolicies¶
Introduction¶
multi-networkpolicy provides network policy features for secondary networks, and allows enhanced traffic security.
Motivation¶
In Kubernetes the paradigm is that by default, all pods can reach other pods, and security is provided by implementing Network Policy. MultiNetworkPolicies provide the same security solution to secondary interfaces. For users seeking network security using multi-homing - traffic restrictions based on user network configuration is a recommended practice.
For example, by defining policies that specify which services a workload can access, they mitigate supply chain attacks and reduce the risk of lateral movement. Even if a component is compromised, it won’t be able to jeopardize other components of the system.
User-Stories¶
As a project administrator, I want to enforce network policies that must be adhered to by all workloads on my namespace. This will secure my namespace’s network traffic.
User-case¶

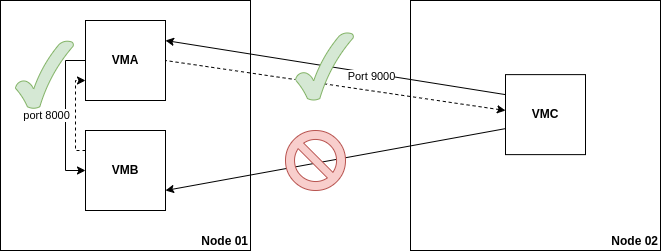

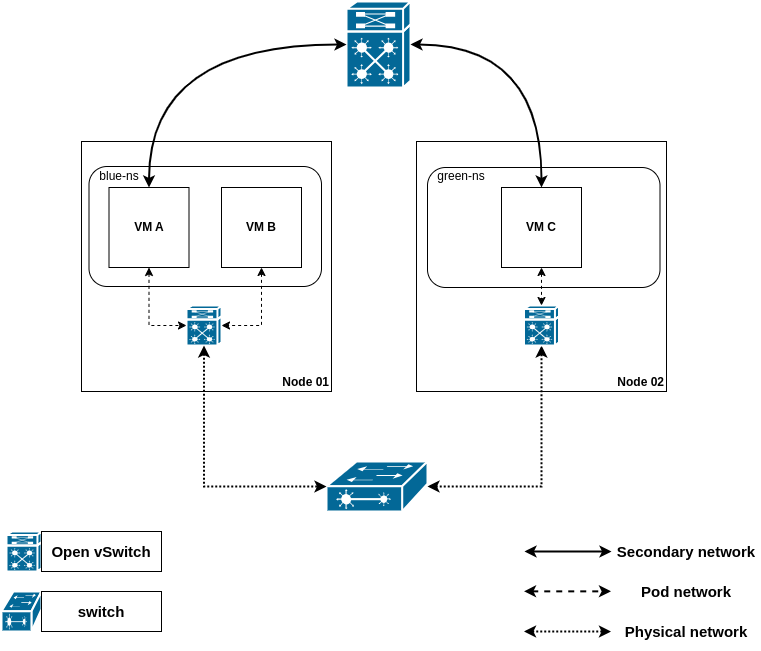

- Limit access between workloads running on the cluster connected on a flat layer2 topology: In this case example, VMA is a data processor, VMC is a real-time data producer, and VMB is a monitoring and alerting unit. The data producer (VMC) can send data to the data processor (VMA), but cannot communicate with the monitoring unit (VMB). The data processor (VMA) can send alerts and metrics to the monitoring unit (VMB).

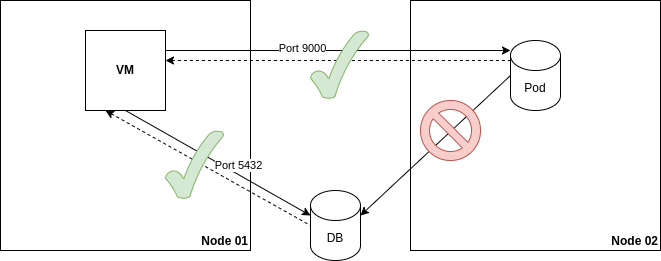

- Limit access to a database set outside the cluster, connected to VM and Pod workloads via localnet overlay network: In this case example, only the VM has access to the database.

How to enable this feature on an OVN-Kubernetes cluster?¶
The multi-network-policies feature must be enabled in the OVN-Kubernetes configuration. Please use the Feature Config option enable-multi-network under OVNKubernetesFeatureConfig config to enable it.
Always check the dependencies on the Requirements page
Workflow Description¶
To configure pod isolation, the user must: - provision a network-attachment-definition. - provision a MultiNetworkPolicy indicating to which secondary networks it applies via the policy-for annotation.
Please refer to the following example:
---
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
name: tenant-blue
spec:
config: '{
"cniVersion": "0.4.0",
"name": "tenant-blue-net",
"netAttachDefName": "default/tenant-blue",
"topology": "layer2",
"type": "ovn-k8s-cni-overlay",
"subnets": "192.168.100.0/24"
}'
---
apiVersion: k8s.cni.cncf.io/v1beta1
kind: MultiNetworkPolicy
metadata:
annotations:
k8s.v1.cni.cncf.io/policy-for: default/tenant-blue # indicates the net-attach-defs this policy applies to
name: allow-ports-same-ns
spec:
podSelector:
matchLabels:
app: stuff-doer # the policy will **apply** to all pods with this label
ingress:
- ports:
- port: 9000
protocol: TCP
from:
- namespaceSelector:
matchLabels:
role: trusted # only pods on namespaces with this label will be allowed on port 9000
policyTypes:
- Ingress
Please note the MultiNetworkPolicy has the exact same API of the native networking.k8s.io/v1 NetworkPolicyobject; check its documentation for more information.
[!NOTE]
net-attach-defs referred to by thek8s.v1.cni.cncf.io/policy-forannotation without the subnet attribute defined are possible if the policy only featuresipBlockpeers. If thenet-attach-deffeatures thesubnetattribute, it can also featurenamespaceSelectorsandpodSelectors.
Validation of ipBlock peers¶
The MultiNetworkPolicy CRD does not validate the cidr and except fields of an ipBlock peer, so OVN-Kubernetes validates them when it translates the policy. The rules are:
cidrmust be a CIDR (10.10.0.0/16) or a bare IP address (10.10.1.42). A bare IP is treated as a single-host CIDR (/32or/128).- Each entry in
exceptmust also be a CIDR or a bare IP address, must be contained incidr, and must be a strict subset of it. - A CIDR with host bits set, such as
10.10.1.42/24, is accepted and canonicalized to its network address,10.10.1.0/24. - IPv4-mapped IPv6 values, such as
::ffff:10.10.1.42, are not allowed, as they are forNetworkPolicysince Kubernetes 1.36.
A peer that fails validation is ignored, not rejected: the policy is still applied without that peer, and a warning is logged by ovnkube-controller naming the policy and the reason. If every peer of a rule is invalid, the whole rule is ignored. Because policyTypes still selects the pods for isolation, dropping a rule never turns the policy into an allow-all: a rule with no valid peers simply allows nothing.
User facing API Changes¶
There are no user facing API Changes.
